MySat Space Fan Kit

298.00$

MySat is a fully functional small satellite (CubeSat) STEM kit for space fans.

Includes:

– Main board, camera and all sensors necessary for real satellites: current and battery controls, temperature, sun sensor, positions, real time clock, pressure and compass;

– Printed frame parts;

– Tools for assembly and programming.

MySat is your personal satellite. Simple control and step-by-step assembly allows even non-technical users to develop their space project!

Estimated delivery time — 3 weeks!

See what’s included in the FanKit

Additional information

Battery	2500 mAh
Charger input voltage	100-240V AC 50/60 Hz
Charger output current	3×1600 mAh
Connection	802.11b/g/n Wi-Fi
Dimensions	10 cm x 10 cm x 10 cm
Weight	230g
Storage	4 GB SD card
Processor	ESP-32

Description

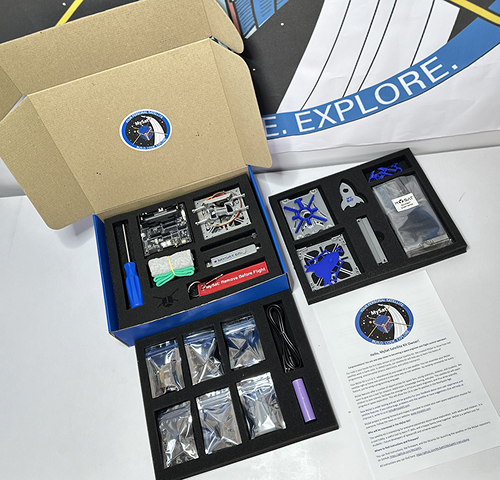

This kit includes everything you need to assemble and explore your own educational satellite.

Box with the packing of accessories
Future engineer welcome letter
Sticker pack – 3 pcs
MySat patch
Tools
1. Screwdriver
2. Antistatic gloves
Electronic components
1. Main board – MySat custom PCB board with connectors, placement for units, I2C bus, status LEDs, INA219 current sensor.
2. SD card 4GB
3. UltraHD camera with 1600×1200 pixels and viewing angle of 166 degrees.
4. Real-time unit – DS3231 extremely accurate I2C real-time clock (RTC) with integrated temperature-compensated crystal oscillator (TCXO).
5. Power and charging unit: DC 5V 2.1A Mobile Power Board, 4.2V Charge/Discharge boost battery protection indicator module, 3.7V lithium 18650.
6. Position and orientation module: Accelerometer–gyroscope–compass (MCU): MPU-9250 module (three-axis gyroscope, three-axis acceleration, three-axis magnetic field), Module Model: GY-9250.
7. Module for analog-to-digital converter (ADC) for light sensors: ADS1015 12-bit precision converter ADC module development board.
8. Bosch BME280 Humidity, Temperature, and Pressure Sensor
9. Battery 18650: LiitoKala 18650 2600mAh ICR18650-26FM
10. Programmer USB-TTL CP2102
11. RBF satellite switch with red key chain
12. 2-pin switch for programming
Cables
1. Power LED
2. Bright LED “Star”
3. Light sensors (photoresistors) – 4 pcs
4. USB Type-C charging cable
5. Programming cable – 4-wire Dupont F-M
Mechanical parts
1. External side walls – 4 pcs
2. Internals for side walls – 5 pcs
3. Top/bottom frames – 2 pcs
4. Side bars – 4 pcs
5. Bolts M3×8 – 32+2 pcs
6. Square nuts M3 – 28+2 pcs
7. Nylon hexagonal bar M3×40+6 – 4 pcs
8. Nylon hexagonal bar M3×40 for units – 4 pcs
