MySat – Basic Kit

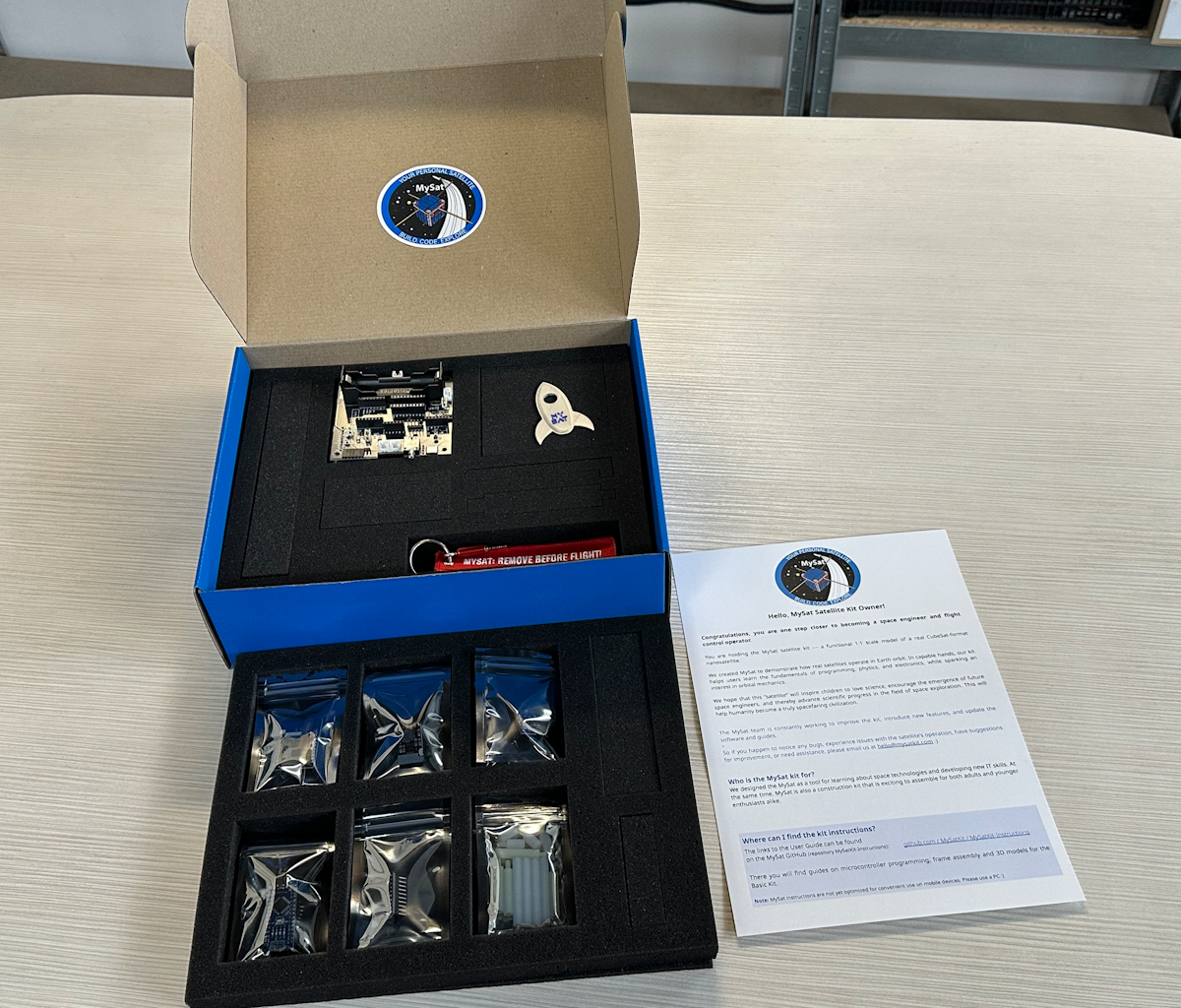

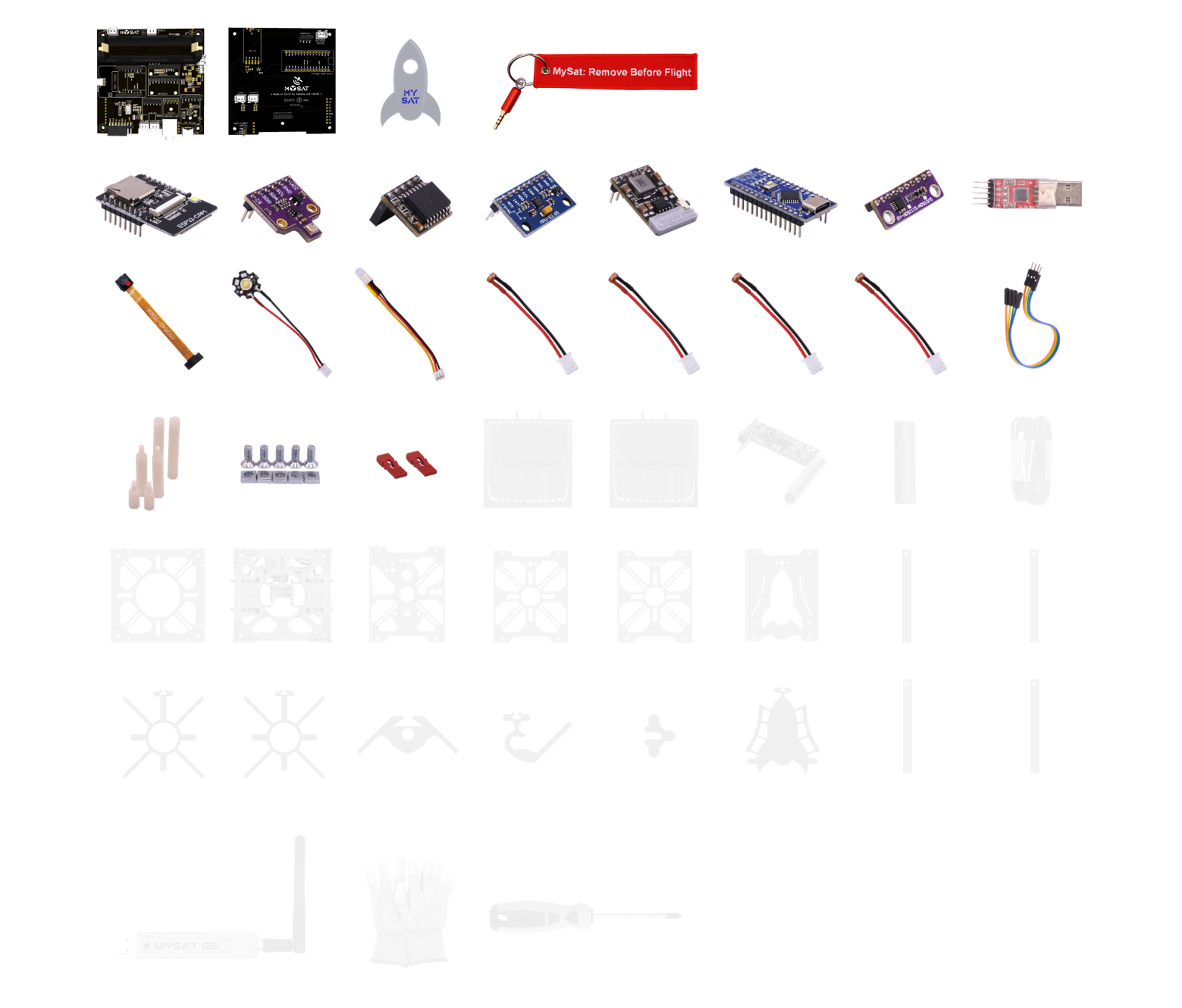

Full list of components:

1. Instruction
2. Sticker pack
3. MySat patch
4. Electronic components

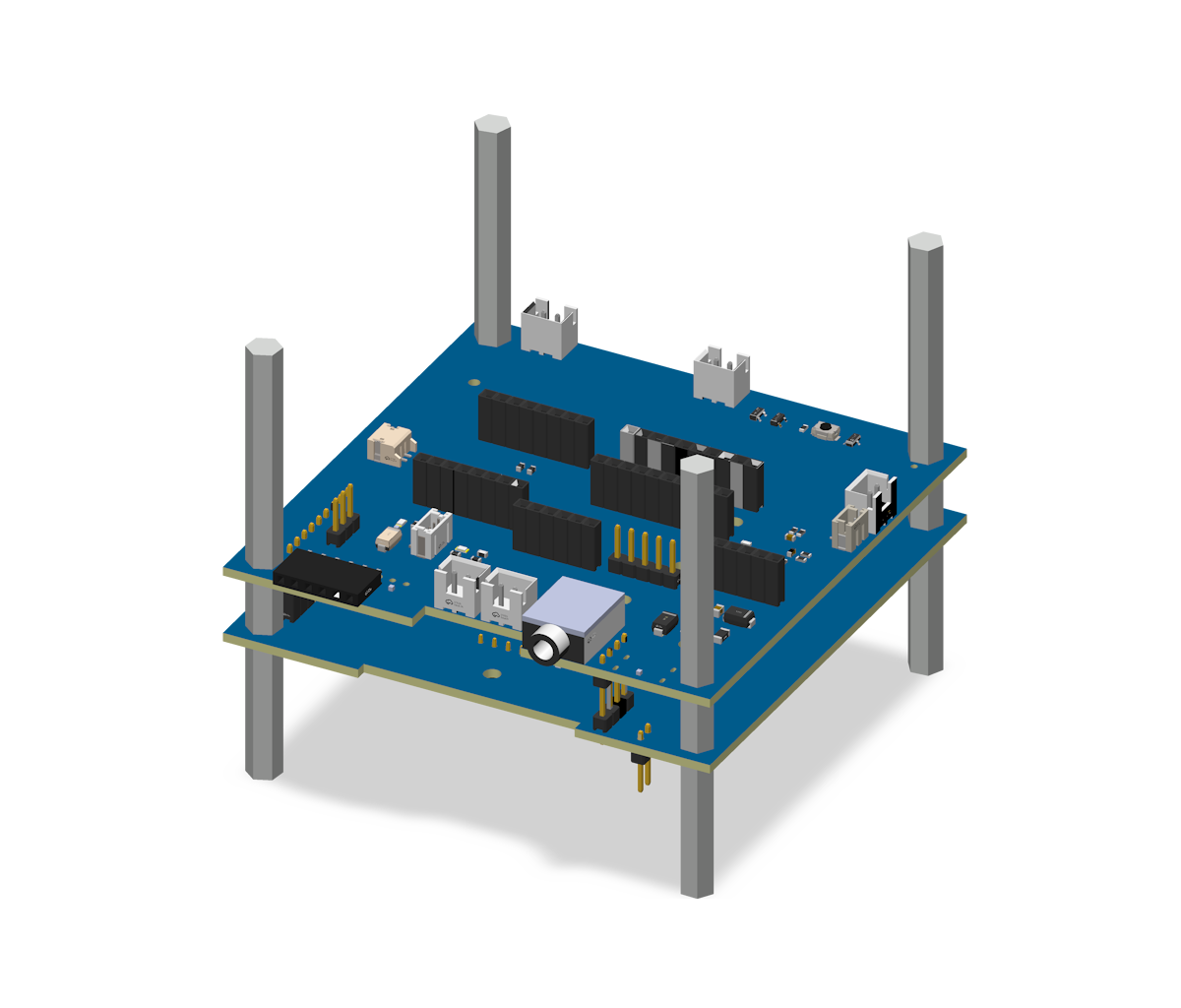

   1. Main board – MySat custom PCB board with connectors, placement for units, I2C bus, status LEDs, INA219 current sensor.
   2. SD card 4GB
   3. UltraHD camera with 1600×1200 pixels and viewing angle of 166 degrees.
   4. Real-time unit – DS3231 extremely accurate I2C real-time clock (RTC) with integrated temperature-compensated crystal oscillator (TCXO).
   5. Power and charging unit: DC 5V 2.1A Mobile Power Board, 4.2V charge/discharge boost battery protection indicator module, 3.7V lithium 18650.
   6. Position and orientation module: Accelerometer–gyroscope–compass (MCU): MPU-9250 module (three-axis gyroscope, three-axis acceleration, three-axis magnetic field), Module Model: GY-9250.
   7. Module for analog-to-digital converter (ADC) for light sensors: ADS1015 12-bit precision ADC module development board.
   8. Bosch BME280 Humidity, Temperature, and Pressure Sensor
   9. Battery 18650: LiitoKala 18650 2600mAh ICR18650-26FM
   10. Programmer USB-TTL CP2102
   11. RBF satellite switch with red key chain
   12. 2-pin switch for programming
5. Wires and wired sensors
   1. Power LED
   2. Bright LED “Star”
   3. Light sensors (photoresistors) – 4 pcs
   4. Programmer cable
6. All documentation for electronic schemes, PCB, and software.
